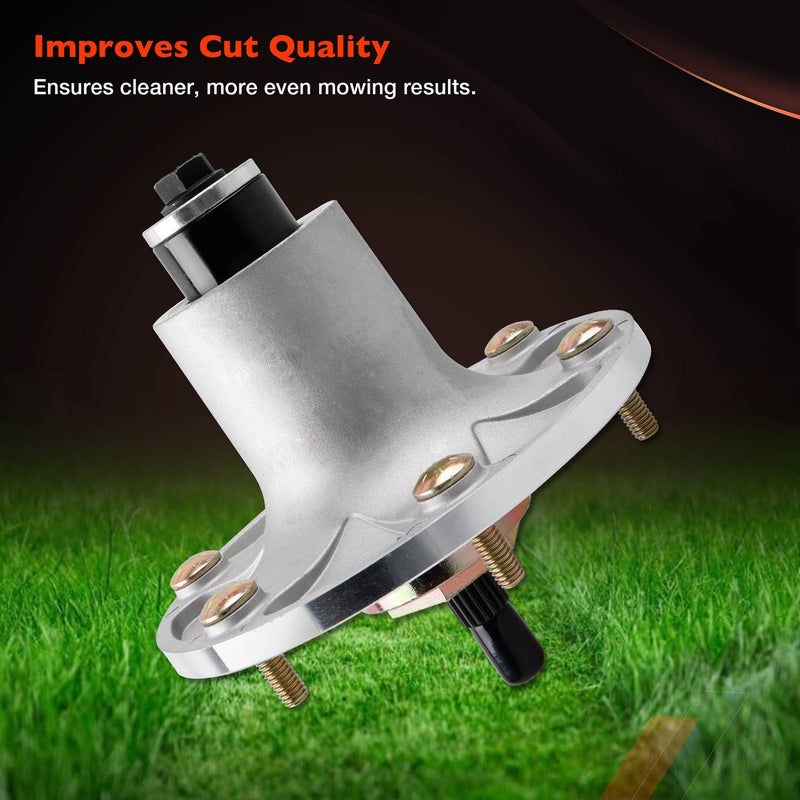

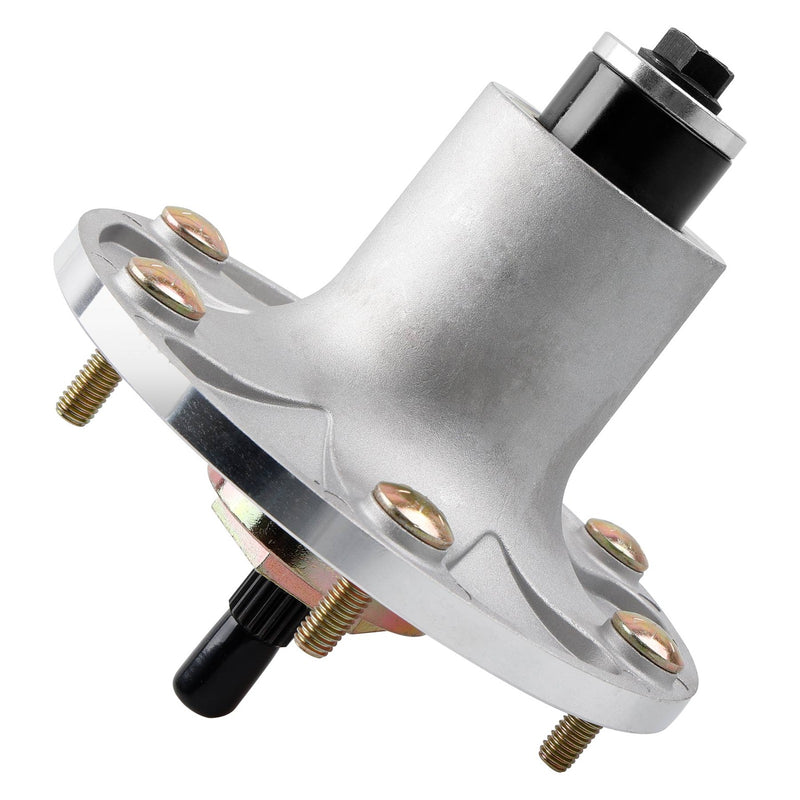

This Deck Spindle is a replacement spindle assembly compatible with Exmark Lazer Z AS, DS, XS, and X-Series mowers and matches OEM Part# 109-6917.

Product Overview

The 109-6917 deck spindle restores smooth blade rotation on Exmark Lazer Z zero-turn mowers. This spindle unit houses heavy-duty bearings and a precision shaft to maintain true blade alignment across 48- to 72-inch cutting decks. Commercial and residential operators rely on this spindle for consistent cut quality and reduced deck vibration.

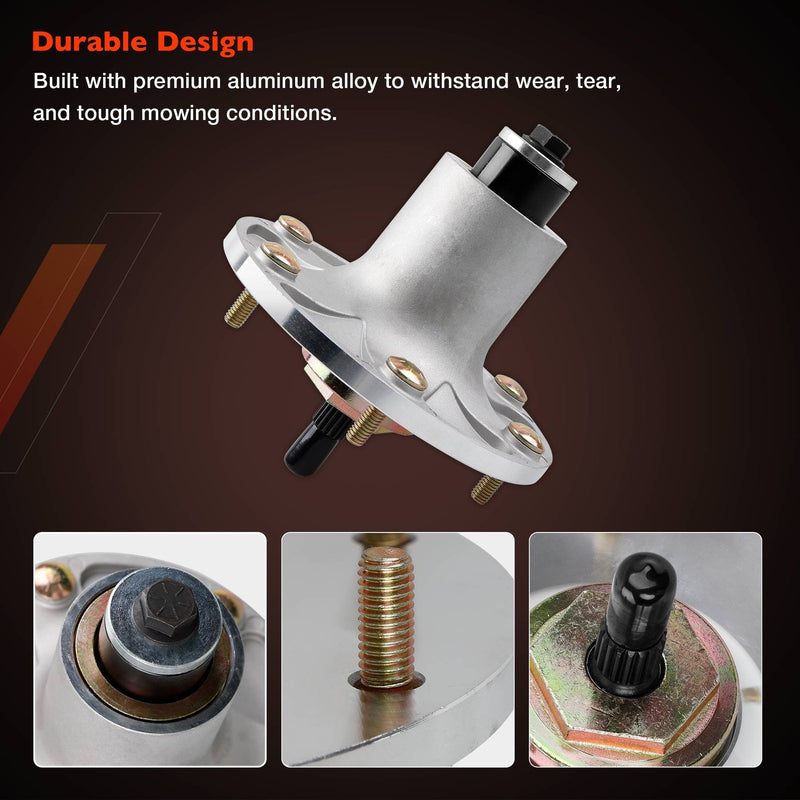

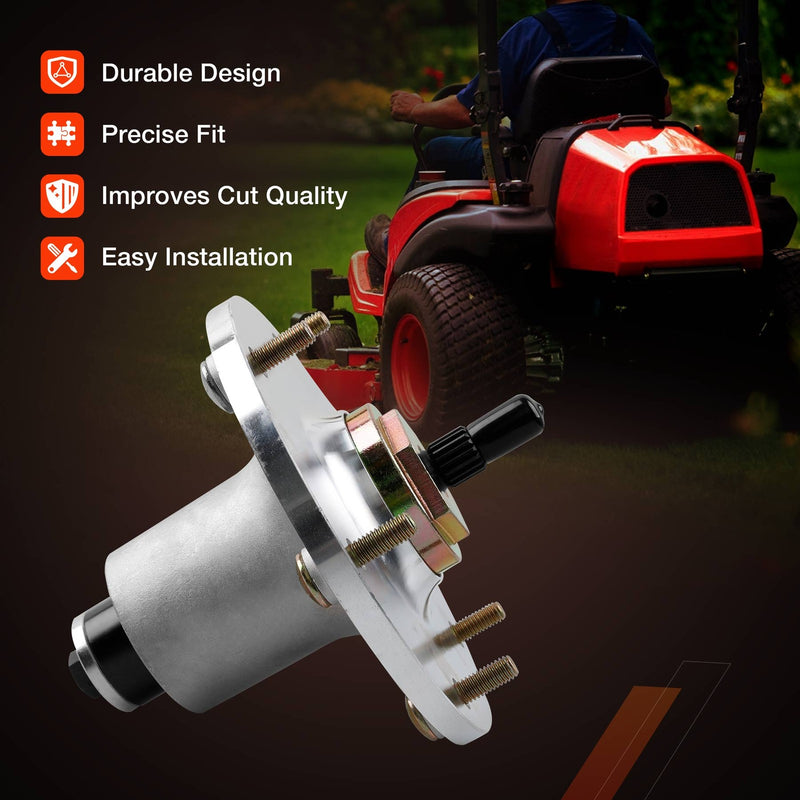

Key Features & Performance

  • Factory-lubricated sealed bearings minimize maintenance and block debris ingress
  • Forged steel spindle shaft resists bending under high-impact loads
  • Pre-threaded mounting holes align exactly with OEM deck bolt patterns
  • Replaces part number 109-6917 on multiple Lazer Z deck sizes
  • Rust-resistant coating protects the housing in wet mowing conditions

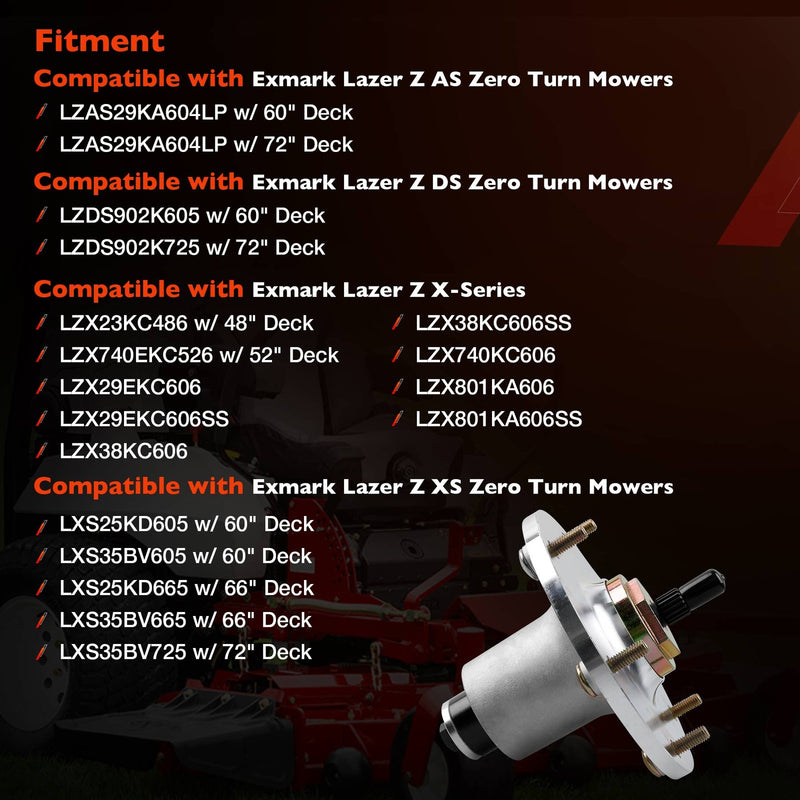

Fitment & Compatibility

  • Exmark Lazer Z AS Series (48, 52, 60, 66, 72-inch decks)
  • Exmark Lazer Z DS Series (48, 52, 60, 66, 72-inch decks)
  • Exmark Lazer Z XS Series (48, 52, 60, 66, 72-inch decks)
  • Exmark Lazer Z X-Series (48, 52, 60, 66, 72-inch decks)

Common Uses

  • Replacing worn or noisy spindle bearings on zero-turn mower decks
  • Restoring correct blade height and tip balance after impact damage
  • Routine deck overhaul when upgrading to high-lift performance blades
  • Commercial landscaping fleet maintenance across mowing seasons

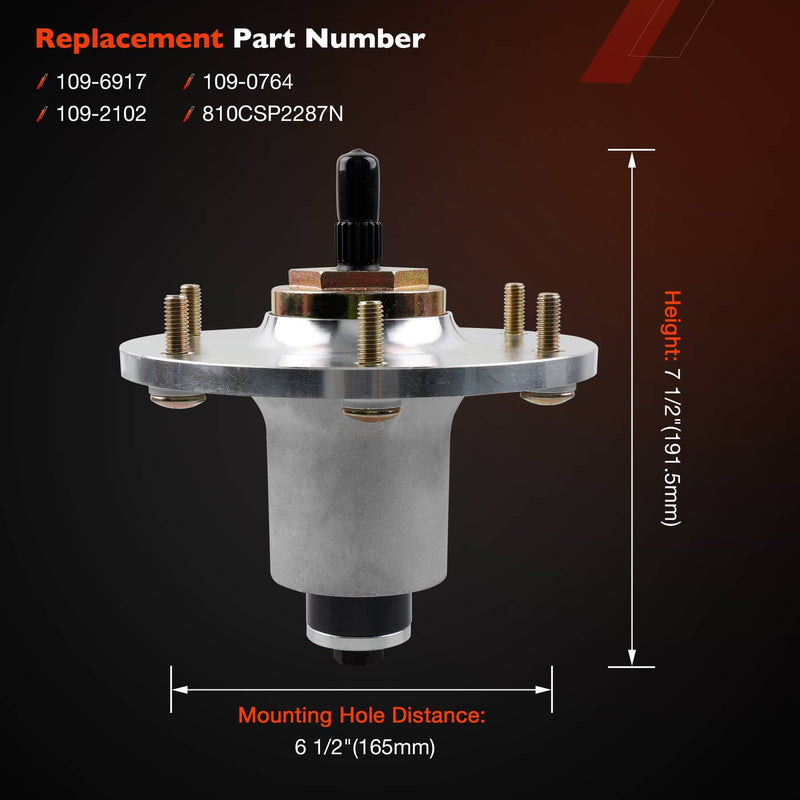

Technical Specifications

  • Part Number(s): 109-6917
  • Compatible Deck Sizes: 48, 52, 60, 66, 72 inches
  • Spindle Type: Sealed-bearing, cast iron housing

Frequently Asked Questions

Q: Do the spindle mounting bolts come with this assembly? A: The spindle typically ships as the bearing housing and shaft only; reuse your existing mounting hardware or purchase bolts separately.

Q: How can I tell if my spindle needs replacement? A: Excessive deck vibration, a grinding sound from the pulley area, or visible side-to-side play in the blade tip are clear signs the spindle bearings have worn out.

Product appearance and specifications may vary slightly by batch. Compatibility may vary by serial number. Verify fitment before purchase.
