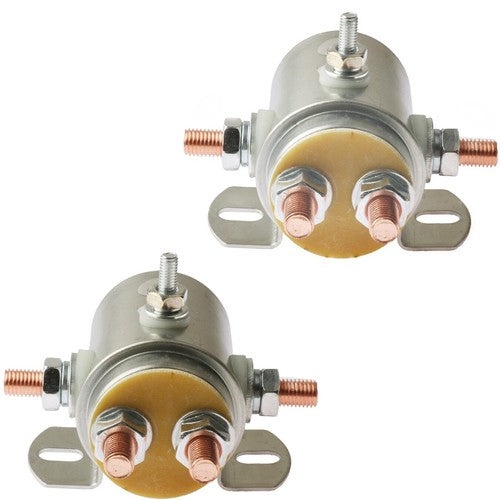

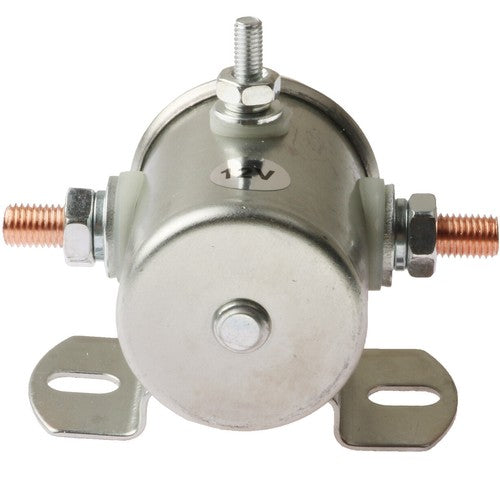

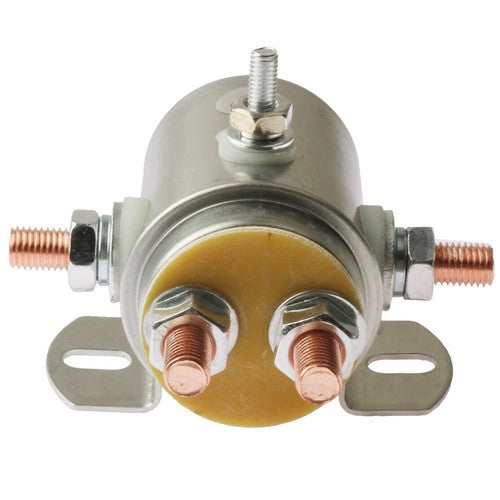

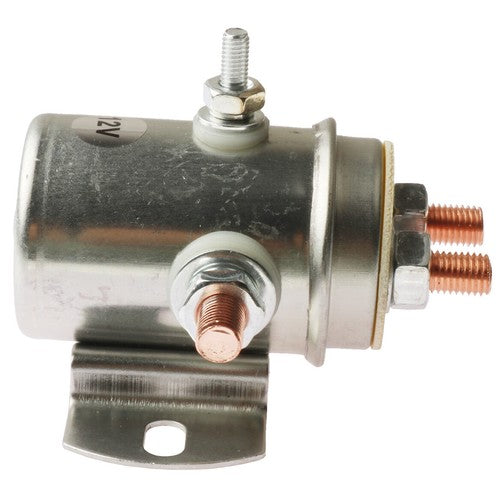

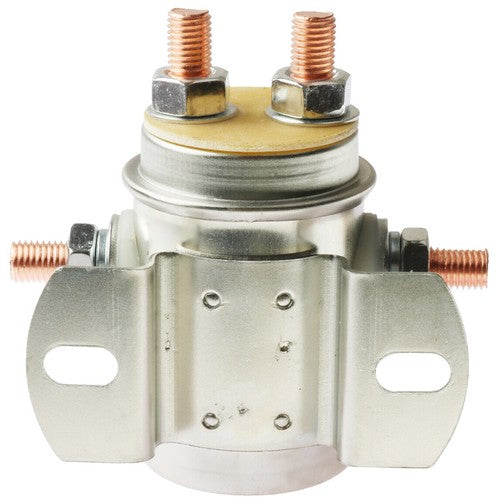

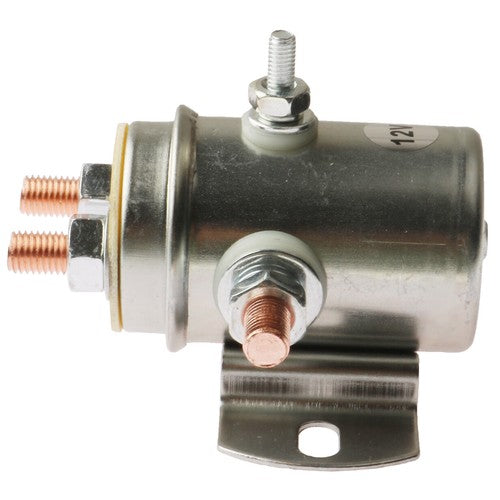

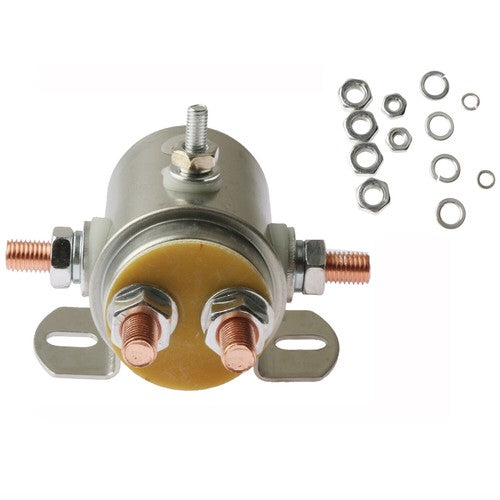

2X 12V 5 Terminal Switch Relay Solenoid for Winch Motor Continuous Duty SBD4201D

Product Overview

This set of two switch relay solenoids provides a reliable 12V 5-terminal continuous duty solution for winch motor control. Designed for heavy-duty applications, these solenoids handle high current loads and are ideal for winch systems, power inverters, and motor reversing circuits. Each solenoid matches the SBD4201D specification for consistent performance.

Key Features & Performance

• Continuous duty rated for sustained operation without overheating
• 5 terminal design supports both normally open and normally closed configurations
• 12V DC coil voltage compatible with standard automotive and ATV electrical systems
• Compact size allows easy mounting in tight spaces
• Gold-plated contacts reduce resistance and extend service life
• Includes two solenoids for dual-motor or bidirectional control setups

Common Uses

• Controlling winch motors on trucks, ATVs, and off-road vehicles
• Reversing motor direction in electric hoists and boat windlasses
• Switching high-current DC loads such as power inverters or battery isolators
• Automated gate openers and hydraulic pump control systems

Technical Specifications

• Voltage: 12V DC
• Number of Terminals: 5
• Duty Cycle: Continuous
• Part Number(s): SBD4201D

Frequently Asked Questions

Q: Can these solenoids be used for intermittent winch operation? A: Yes, they are continuous duty rated, making them suitable for both intermittent and extended winch use without overheating.

Q: What is the maximum current rating for these solenoids? A: While not specified, continuous duty solenoids in this class typically handle 85-100 amps; verify with your winch's requirements.

Product appearance and specifications may vary slightly by batch. Compatibility may vary by serial number. Verify fitment before purchase.
