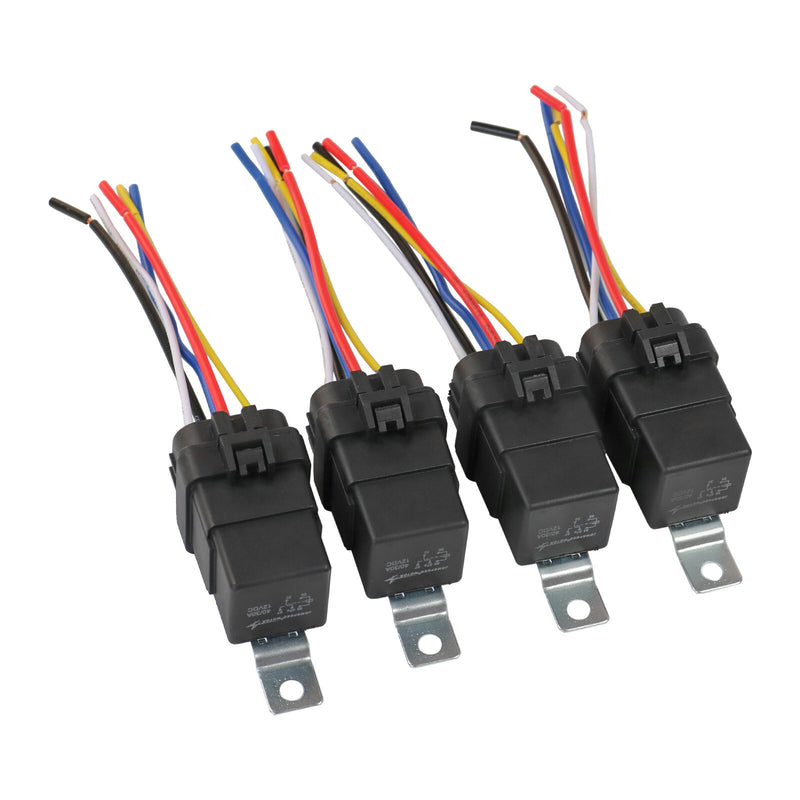

5 Pin 12V 40 Amp Relay Socket with 5" 12 Gauge Wire Pigtail Harness Waterproof

Product Overview

This aftermarket replacement relay and socket set is supplied with a waterproof 5 pin 12V 40 amp relay, a socket, and a 5 inch 12 gauge wire pigtail harness. A relay allows a low current switch circuit to control a higher current circuit, and the socket and pigtail harness provide the connection point and wiring needed to install the relay in an electrical system. The 12V 40 amp rating and 5 pin configuration identify the relay type included in this set.

Key Features & Performance

• 5 pin relay configuration for switching a higher current circuit using a lower current control signal
• 12V 40 amp rating as identified in the title

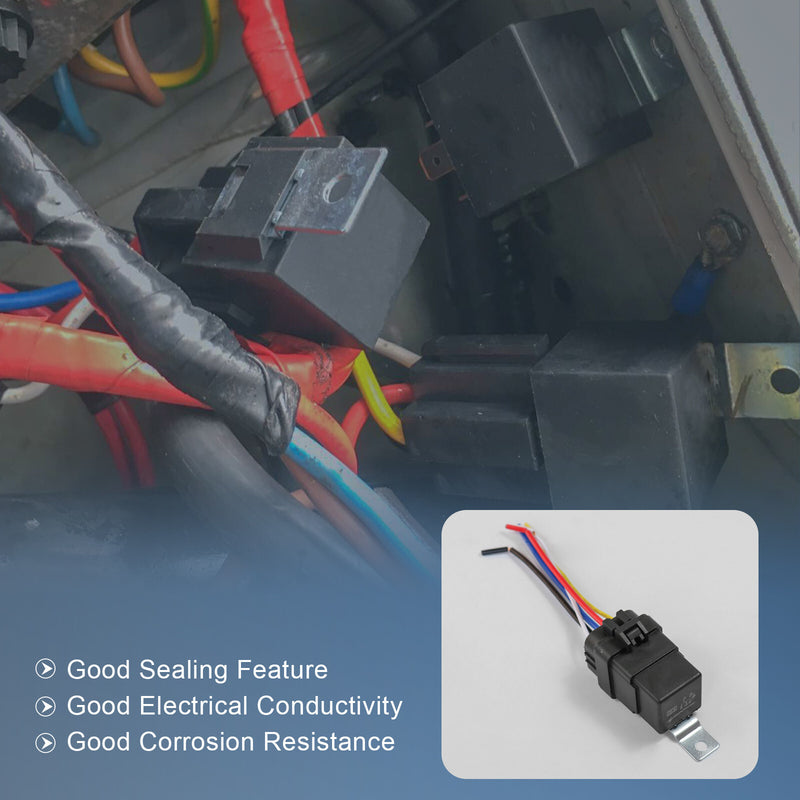

• Waterproof construction for use in applications where moisture exposure is a concern
• Includes a socket for mounting and connecting the relay
• Comes with a 5 inch 12 gauge wire pigtail harness for wiring the relay into a circuit

Common Uses

• Replacing a worn, damaged, or malfunctioning relay in a 12V electrical system
• Servicing or building 12V circuits that require relay switching
• Restoring relay function in automotive, marine, or equipment wiring where a 5 pin 40 amp relay is used

Technical Specifications

• Product Type: Relay and Socket with Wire Pigtail Harness
• Relay Type: 5 pin, waterproof
• Voltage: 12V
• Amperage Rating: 40 amp
• Wire Pigtail Length: 5 inch
• Wire Gauge: 12 gauge
• Included Components: Relay, socket, wire pigtail harness

Frequently Asked Questions

Q: What does a 5 pin 12V relay do? A: A 5 pin relay uses a small control signal to switch a separate higher current circuit on or off. The fifth pin provides an additional output contact compared with a standard 4 pin relay.

Q: How do I verify this relay fits my application? A: Check that your vehicle or equipment uses a 12V, 40 amp, 5 pin relay and compare the pin layout and connector style with your existing relay and socket. Confirm the part number and model details before purchase.

This is an aftermarket replacement part and is not represented as genuine or original equipment. Product appearance and specifications may vary slightly by batch. Compatibility may vary by serial number, model year, or existing part number. Verify fitment before purchase.
