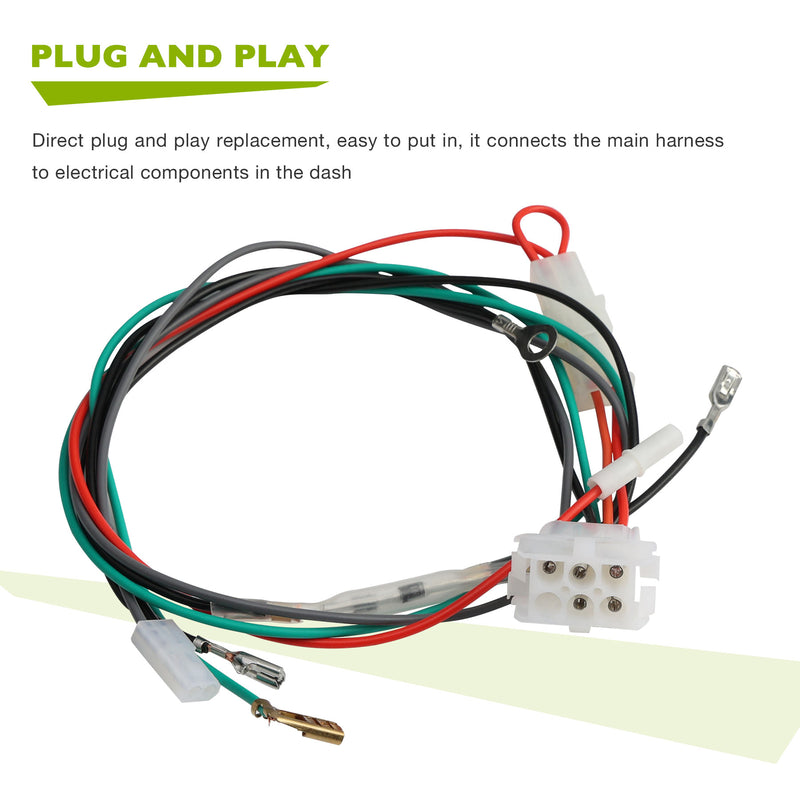

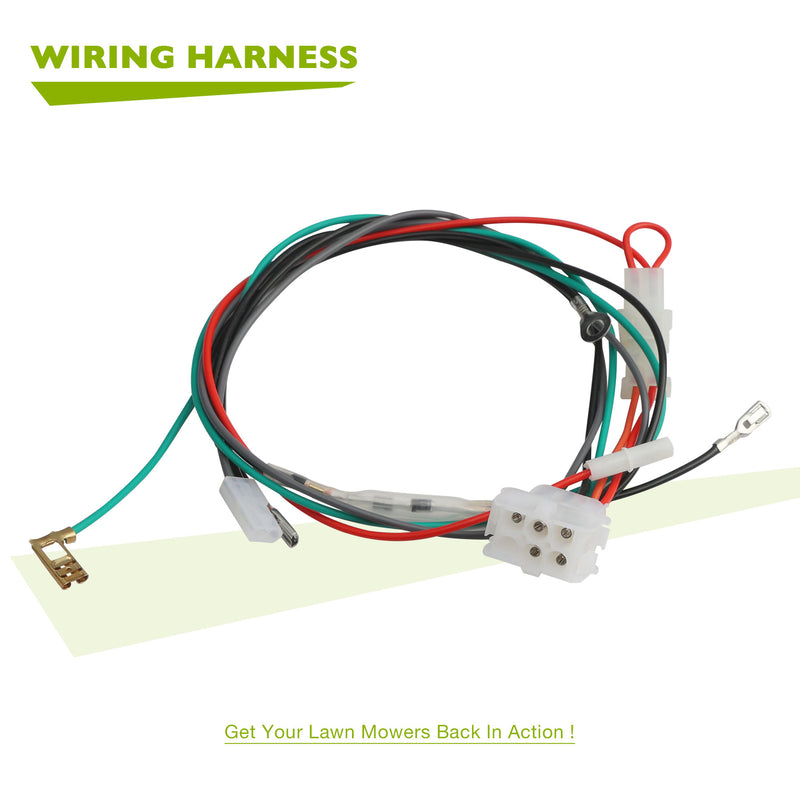

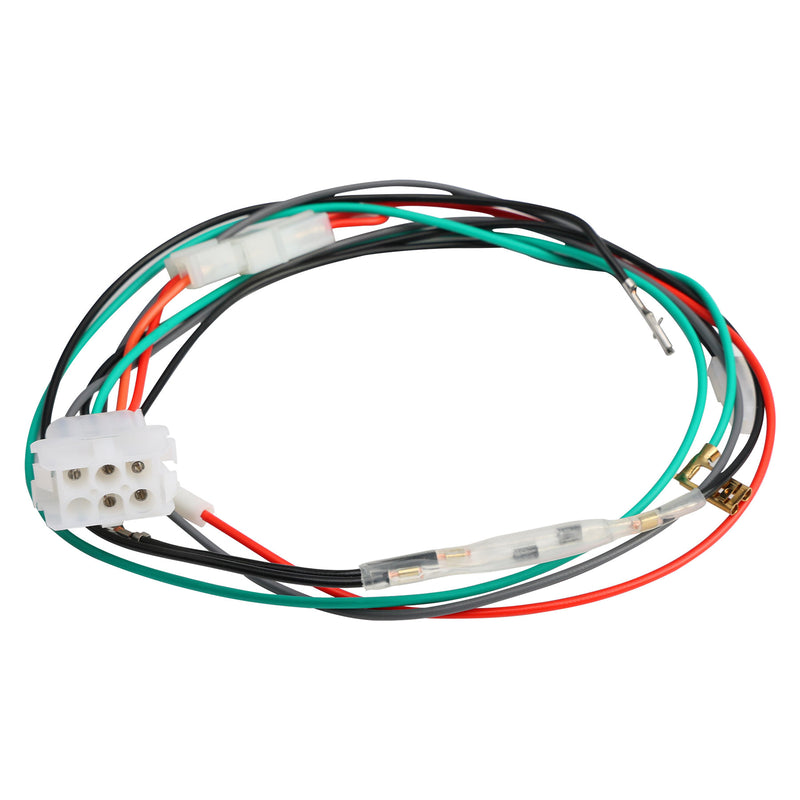

698330 Lawn Tractor Wire Harness For Briggs Stratton RZT50 48 44 LTX1046 RZT22

This Lawn Tractor Wire Harness is a replacement electrical wiring harness compatible with Briggs & Stratton RZT50, RZT48, RZT44, LTX1046, and RZT22 lawn tractors, and matches OEM Part# 698330.

Product Overview

The Lawn Tractor Wire Harness connects critical electrical components including the ignition system, lights, safety switches, and battery circuits on Briggs & Stratton zero-turn and lawn tractor models. Replacing a damaged harness restores full electrical function and prevents intermittent failures caused by cracked wires or corroded connectors. This harness is built to match the layout and plug configuration of OEM part 698330 for a straightforward installation.

Key Features & Performance

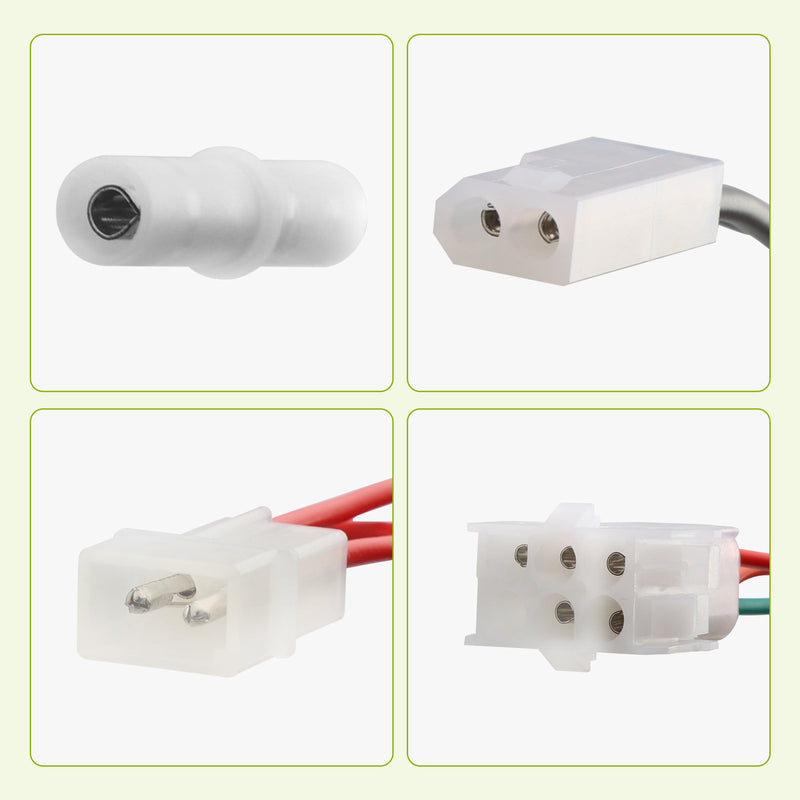

• Plug-and-play connectors match OEM receptacle shapes and pin assignments on RZT and LTX series tractors
• High-temperature insulation resists melting near engine components
• Color-coded wires follow the original wiring diagram for simplified routing
• Strain-relief design on critical branches reduces wire fatigue at flex points
• Protective loom wraps the main bundle for abrasion resistance

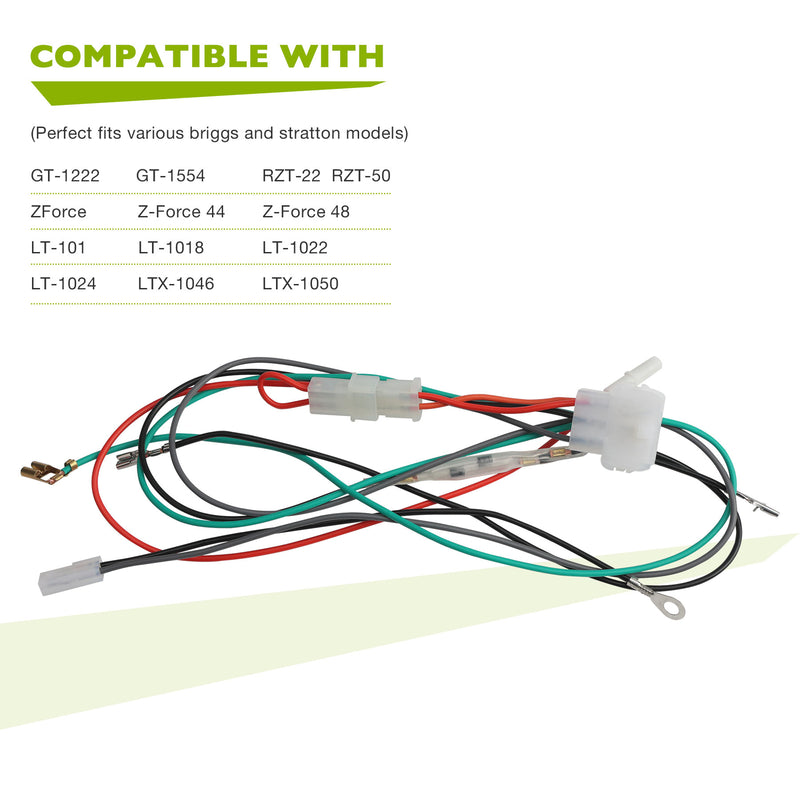

Fitment & Compatibility

• Briggs & Stratton RZT50
• Briggs & Stratton RZT48 (48-inch deck)
• Briggs & Stratton RZT44 (44-inch deck)
• Briggs & Stratton LTX1046
• Briggs & Stratton RZT22

Common Uses

• Replacing a wire harness chewed by rodents or damaged by moisture
• Restoring electrical power to starter, PTO clutch, and dashboard gauges
• Diagnosis and repair of no-start or intermittent connection issues
• Overhauling electrical systems on zero-turn mowers in commercial or residential service

Technical Specifications

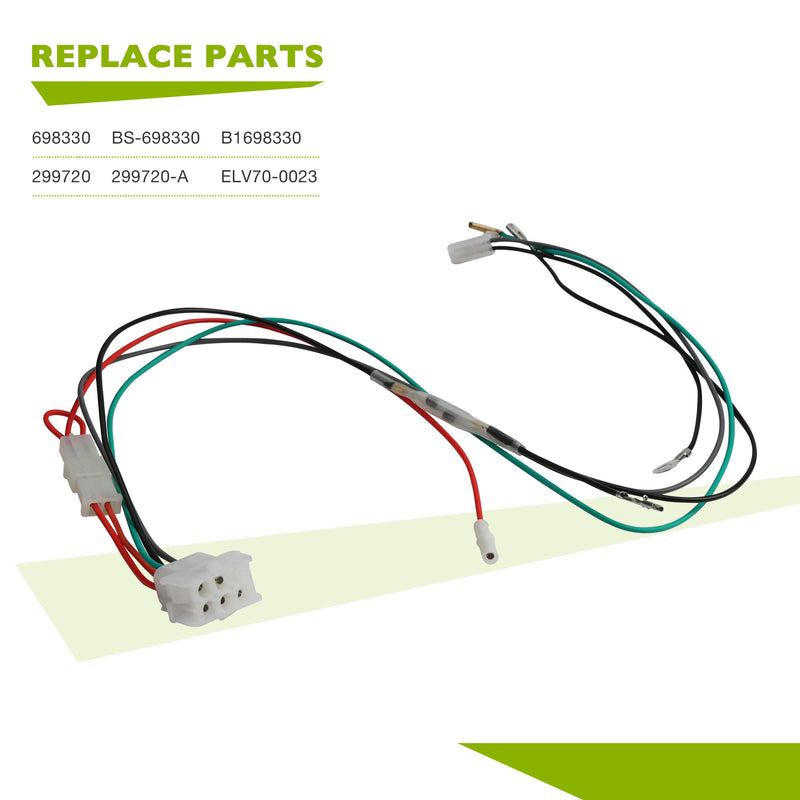

• Part Number(s): 698330
• Type: Lawn Tractor Wire Harness

Frequently Asked Questions

Q: Is this harness a complete replacement for the entire tractor wiring? A: It covers the main chassis wiring for indicated models; confirm your tractor’s exact routing before ordering.

Q: Are connectors pre-installed? A: Yes, all connectors are factory-crimped and ready to plug in—no splicing required.

Product appearance and specifications may vary slightly by batch. Compatibility may vary by serial number. Verify fitment before purchase.
