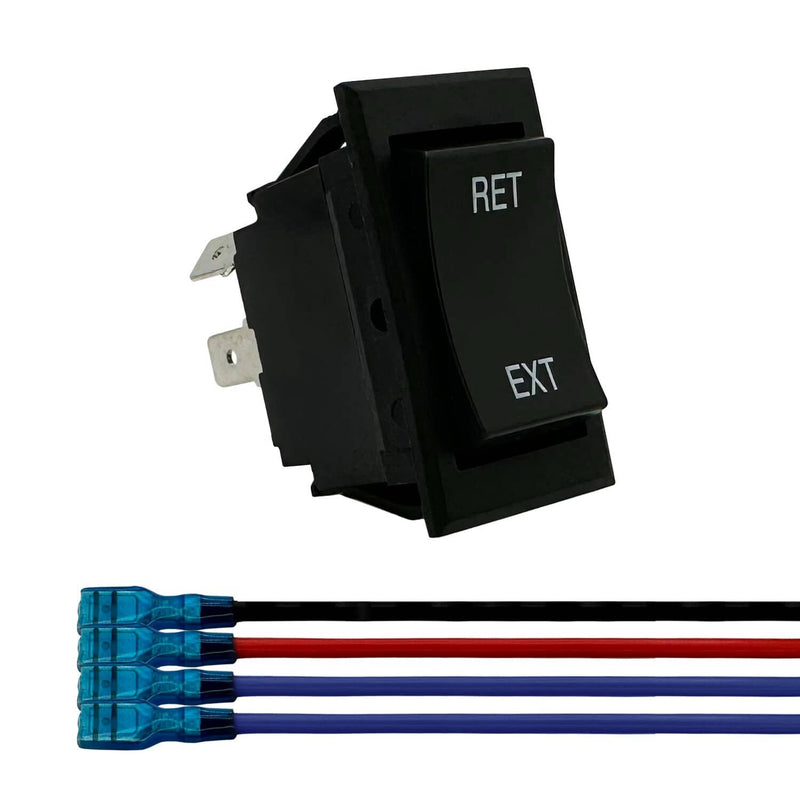

Momentary Reverse Polarity Rocker Switch 20A 12V DC On Off DPDT 4 Pin
Original price
$28.59
-
Original price
$28.59
Original price
$28.59
$28.59
-
$28.59
Current price
$28.59
This Switch is a Momentary Reverse Polarity Rocker Switch rated at 20A, 12V DC, DPDT On-Off with 4 pins, designed to control motor direction in applications like winches and actuators.
Product Overview
Key Features & Performance
- 20 amp continuous rating at 12V DC for reliable power handling
- Momentary action returns switch to off position when released
- Reverse polarity wiring toggles motor direction for winch or actuator control
- DPDT (Double Pole Double Throw) configuration supports reversible motor circuits
- 4 pin design for simple wiring with common SPST/DPDT rocker switch connectors
- Rugged construction suitable for off-road and marine environments
Common Uses
- Control electric winch in forward/reverse operation
- Actuate linear actuators for seating or lifting applications
- Operate power windows or convertible tops with momentary directional control
- Manage polarity reversal for solenoids or DC motors in 12V systems
Technical Specifications
- Amperage Rating: 20A
- Voltage Rating: 12V DC
- Switch Type: DPDT Momentary On-Off-On (with off in center)
- Polarity: Reverse polarity (momentary direction switching)
- Terminals: 4 pins (blade type)
Frequently Asked Questions
Q: Can this switch handle continuous use? A: Yes, it is rated for 20A continuous at 12V DC, but momentary operation is recommended for motor direction changes to extend switch life.
Q: How do I wire a reverse polarity rocker switch? A: Connect power and ground to common pins, then motor leads to the normally open pins; toggling reverses polarity across the motor.
Product appearance and specifications may vary slightly by batch. Compatibility may vary by serial number. Verify fitment before purchase.
