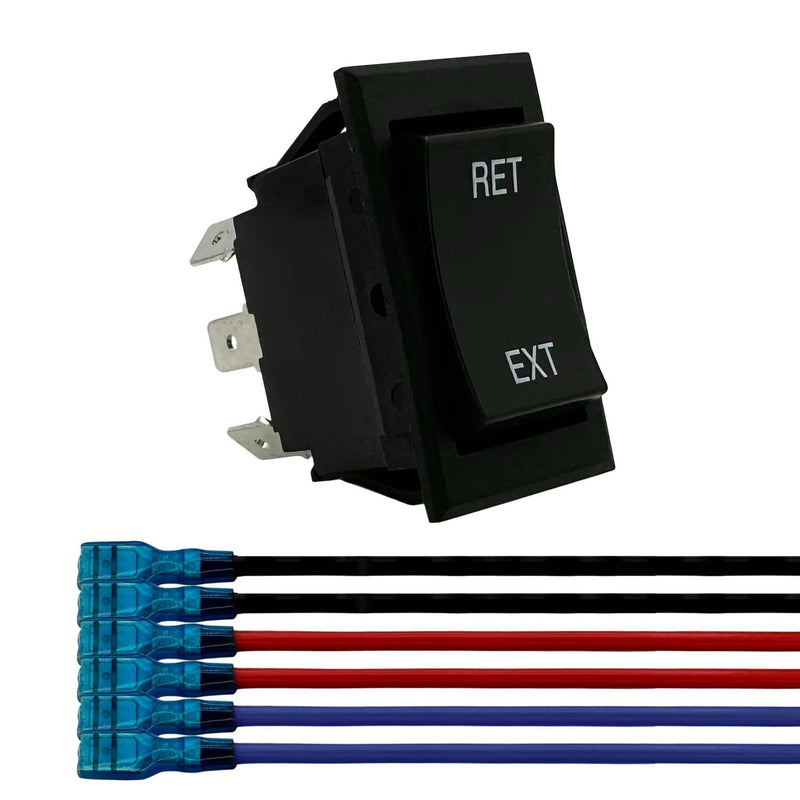

Momentary Reverse Polarity Rocker Switch 20A 12V DC On Off DPDT 6 Pin

Product Overview

This momentary reverse polarity rocker switch provides instant direction reversal for DC motors, winches, and actuators. Rated at 20A and 12V DC, it features a DPDT (Double Pole Double Throw) configuration with 6 pins for reliable On-Off control. Ideal for DIY enthusiasts and professionals needing a compact, heavy-duty switch for reversing applications.

Key Features & Performance

• 20 Amp rating at 12V DC for handling moderate loads
• Momentary reverse polarity function for momentary direction changes
• DPDT (Double Pole Double Throw) circuit with 6 pins for versatile wiring
• On-Off switching with spring-return to center-off position

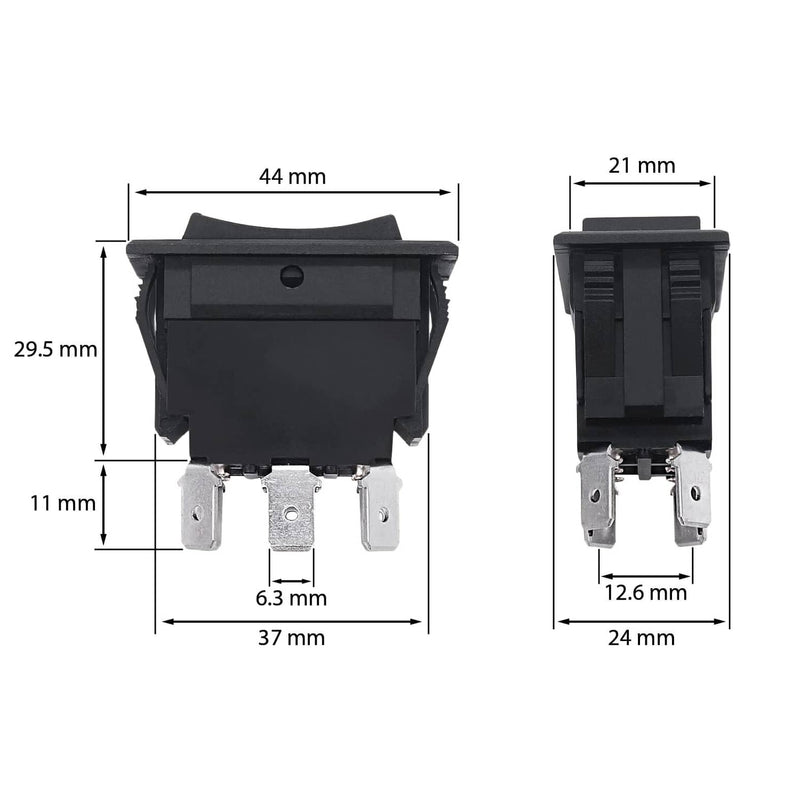

• Standard panel mount size (approx. 1.45" x 0.83")
• Rugged construction for long service life in demanding environments

Common Uses

• Winch control for ATVs, trucks, and trailers
• Boat lift and anchor winch direction control
• Electric actuator reversal for hatches, gates, and lifts
• Automotive power window or seat adjuster circuits
• Industrial equipment forward/reverse motor control

Technical Specifications

• Switch Type: Momentary Reverse Polarity DPDT
• Voltage Rating: 12V DC
• Current Rating: 20A
• Terminal Pins: 6
• Action: Momentary On-Off (spring return)

Frequently Asked Questions

Q: Can this switch be used for constant on/off control without spring return? A: No, this switch is momentary only; it springs back to center-off when released. For latching on/off, you would need a different switch type.

Q: What wire gauge should I use with this 20A switch? A: Use at least 12 AWG wire for 20A loads to prevent overheating. Ensure proper fuse protection as well.

Product appearance and specifications may vary slightly by batch. Compatibility may vary by serial number. Verify fitment before purchase.
