SP20824 Pilot Burner Assembly for Rheem Ruud Richmond LP Orifice Water Heater

Product Overview

The Pilot Burner Assembly is an OEM-grade replacement for Rheem, Ruud, and Richmond water heaters, designed to restore reliable pilot ignition in LP gas models. This pilot burner assembly includes a pre-installed LP orifice for accurate fuel metering and consistent flame performance. Suitable for homeowners and technicians, this SP20824 assembly simplifies pilot repair and ensures safe water heater operation.

Key Features & Performance

• Pre-calibrated LP (propane) orifice for optimal air-fuel mixture.
• Direct replacement for Rheem, Ruud, Richmond SP20824 pilot assemblies.

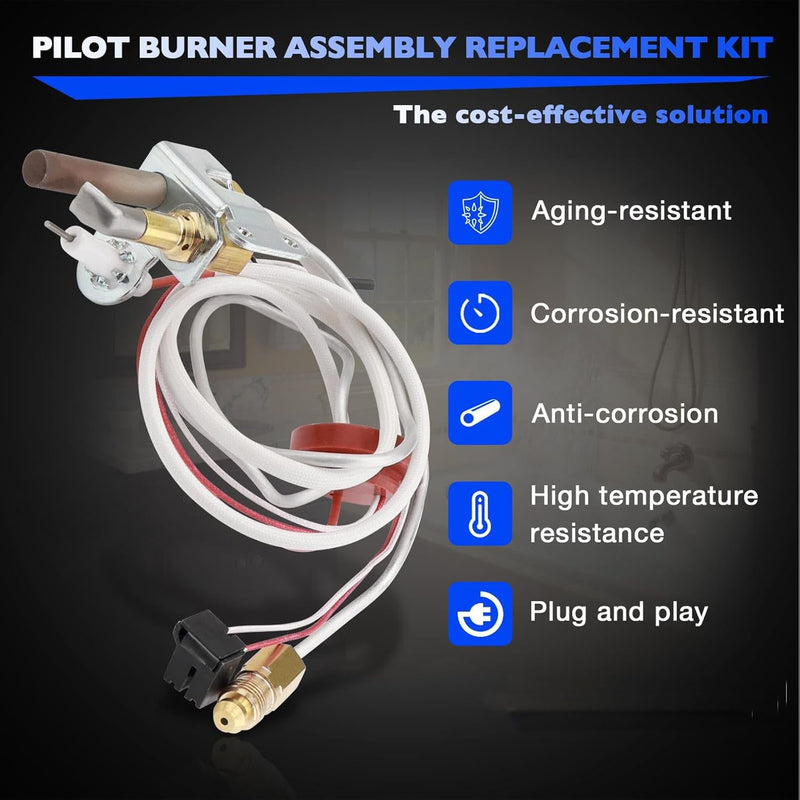

• Corrosion-resistant materials ensure long life in moist burner compartments.

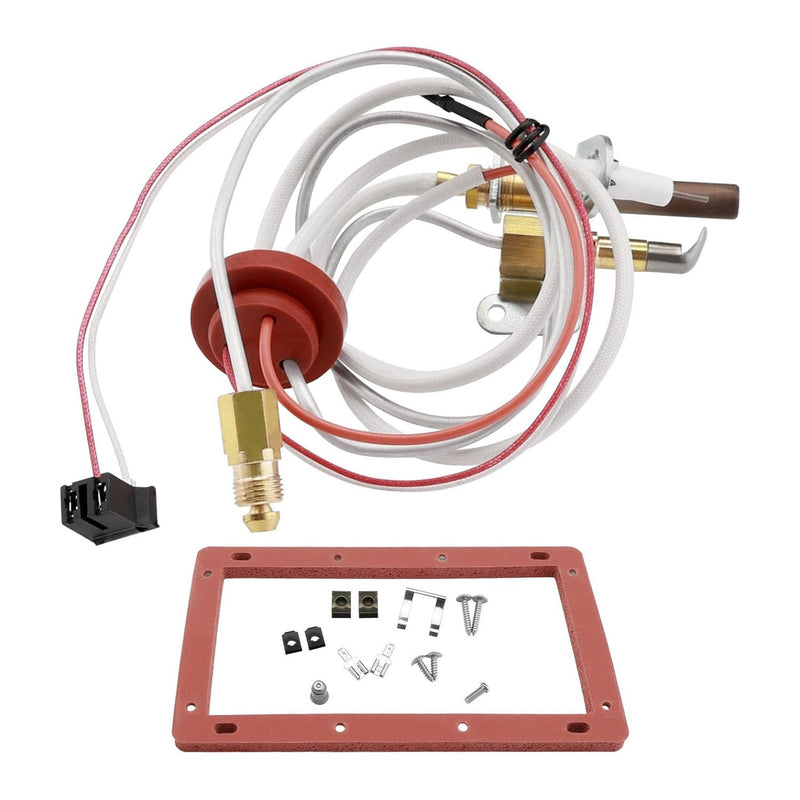

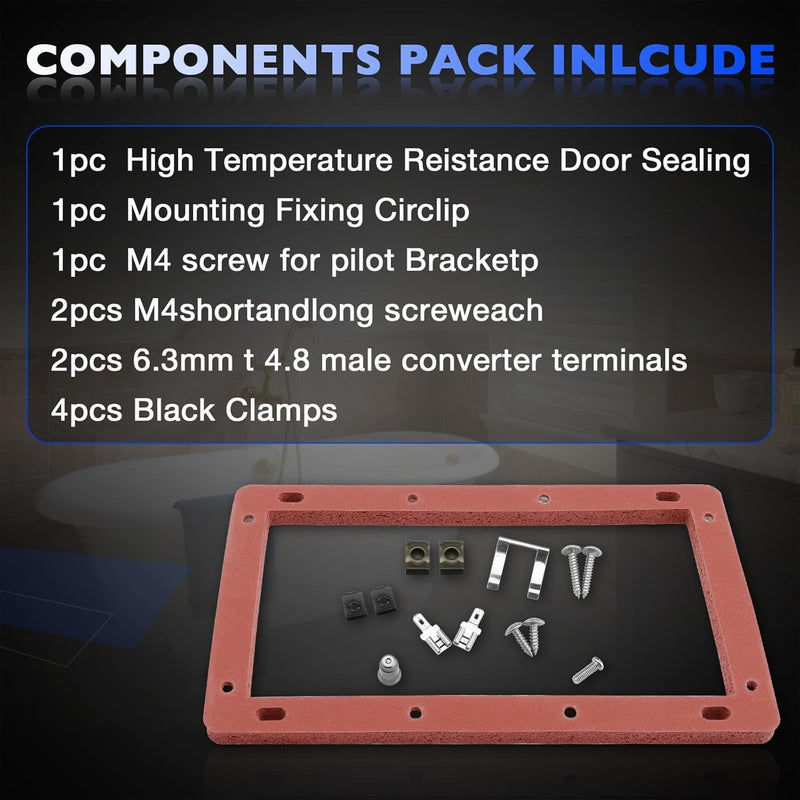

• Complete kit with burner, orifice, and mounting hardware for hassle-free installation.
• Tested to produce a strong pilot flame that reliably ignites the main burner.
• Exact fitment eliminates need for drilling or modification.

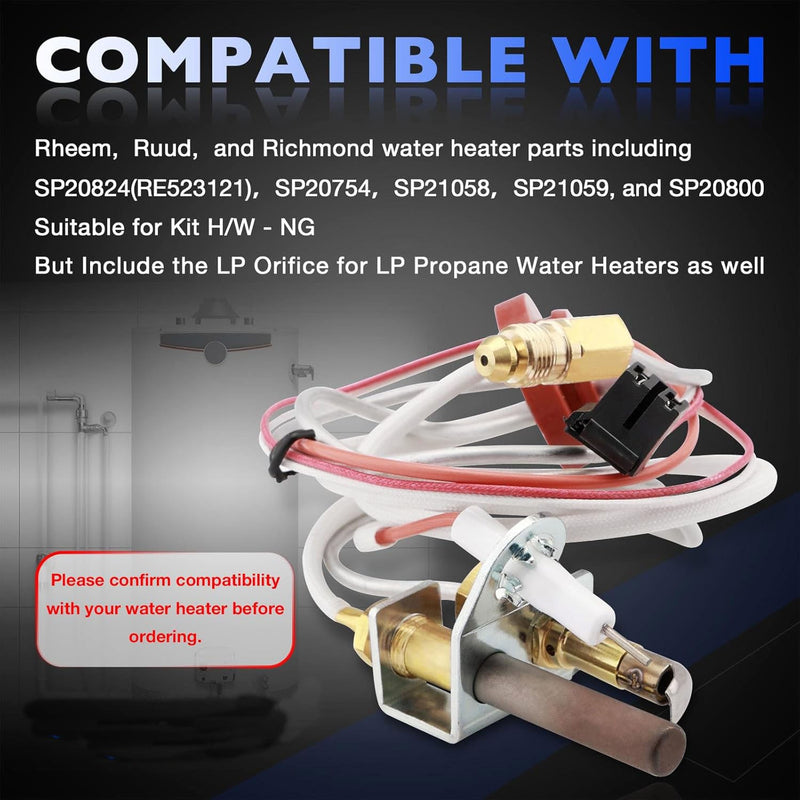

Fitment & Compatibility

• Rheem residential gas water heaters requiring SP20824 pilot assembly
• Ruud gas water heaters using SP20824 pilot
• Richmond water heaters with LP gas conversion and SP20824 pilot

Common Uses

• Restoring pilot ignition in Rheem, Ruud, Richmond LP water heaters
• Repairing intermittent pilot outages due to dirty or damaged burner
• Replacing old pilot assemblies during routine water heater maintenance
• Ensuring safe gas combustion by installing an OE-spec pilot burner

Technical Specifications

• Part Number(s): SP20824
• Gas Type: LP (Propane)
• Burner Material: Stainless steel
• Compatible Brands: Rheem, Ruud, Richmond

Frequently Asked Questions

Q: Does this pilot assembly come with the thermocouple? A: This listing includes the pilot burner, orifice, and mounting hardware only; the thermocouple or thermopile is not included unless specifically noted. Please check the product images for all included components.

Q: Will this SP20824 pilot burner work with natural gas? A: No, this assembly is equipped with an LP orifice designed for propane. Using it with natural gas would require replacing the orifice with a natural gas version to ensure safe and proper operation.

Product appearance and specifications may vary slightly by batch. Compatibility may vary by serial number. Verify fitment before purchase.
