Timing Pin Injector Height Tool Barring Socket for Cat 3406E C-15 C-16 Steel Set

Product Overview

This aftermarket replacement timing pin and injector height tool set is intended for the listed Caterpillar engine models, including the 3406E, C-15, and C-16. The set includes a barring socket and steel pins used for positioning the engine and checking injector height during servicing. These tools support the normal timing and injector adjustment procedures for the listed engine applications.

Key Features & Performance

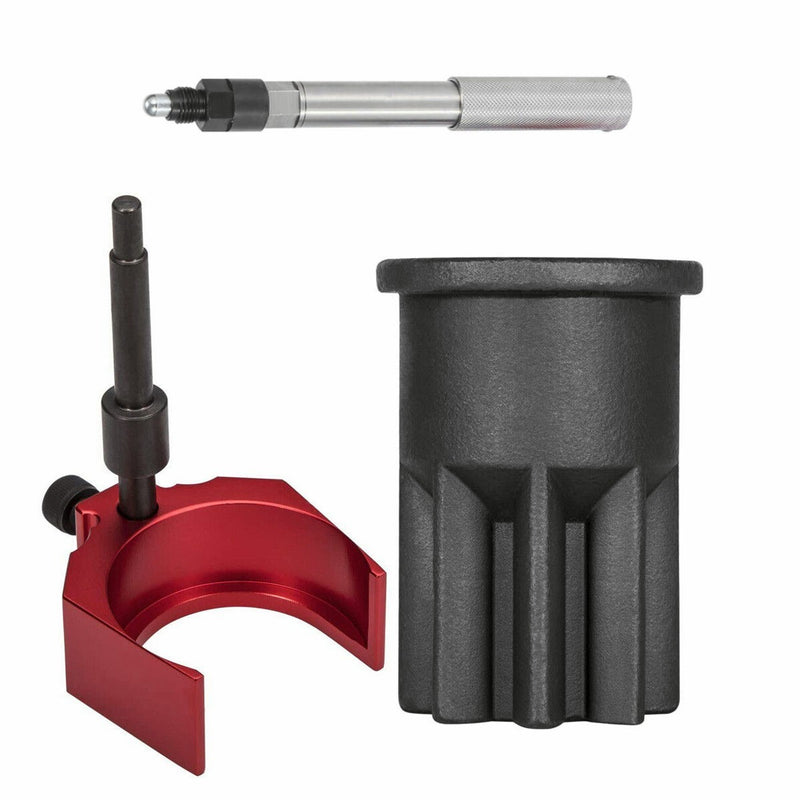

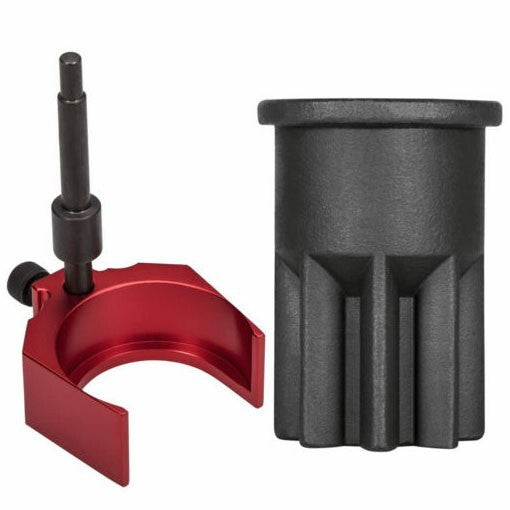

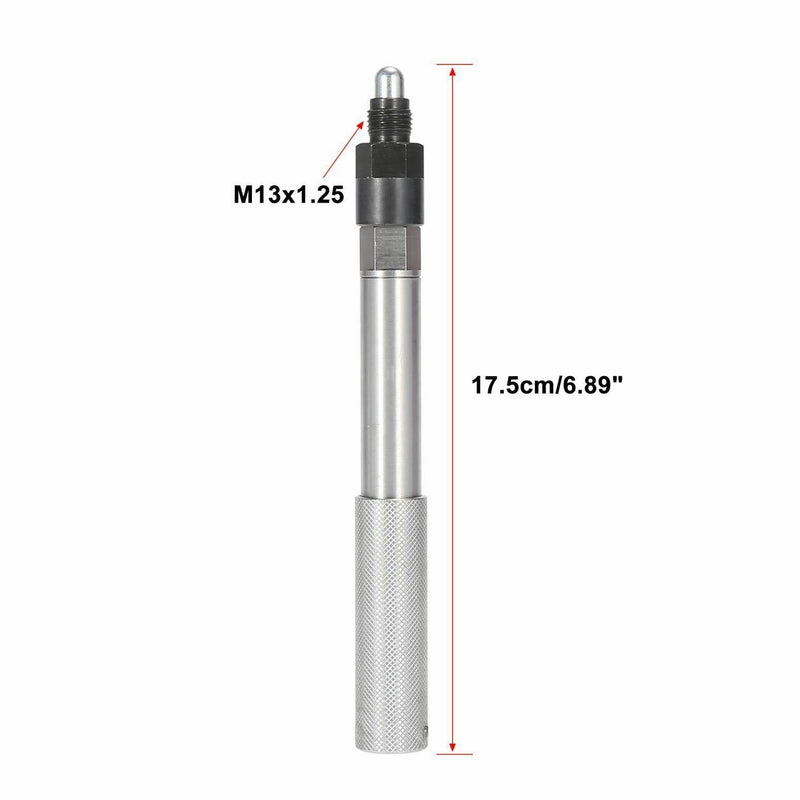

• Includes timing pin and injector height tools for engine positioning and injector adjustment checks

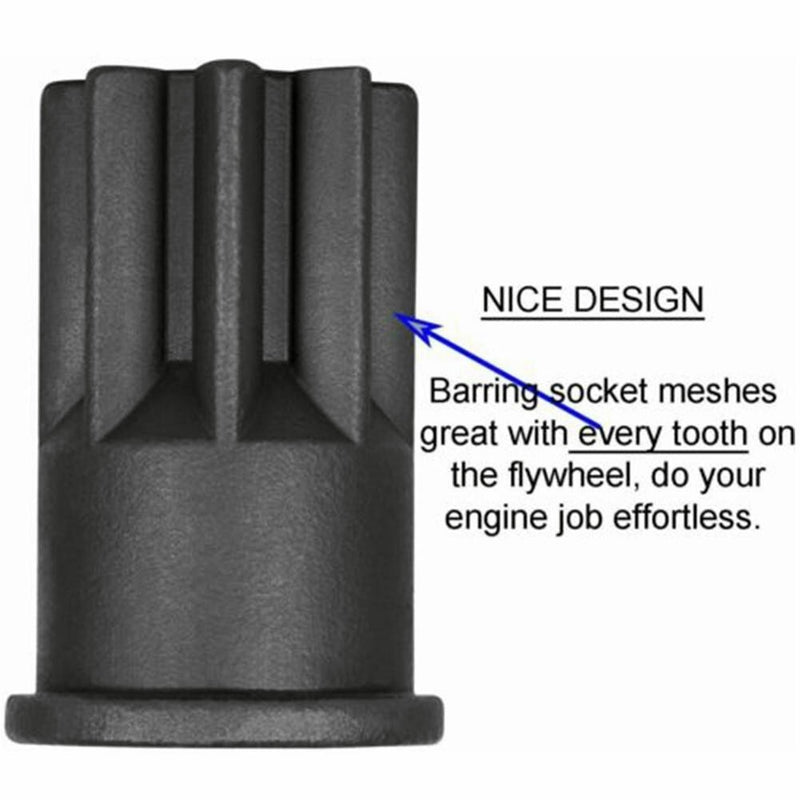

• Barring socket is designed for rotating the engine during service procedures
• Steel construction is intended for use with the listed Caterpillar engine models

Fitment & Compatibility

• for Caterpillar 3406E engine applications
• for Caterpillar C-15 engine applications
• for Caterpillar C-16 engine applications

Common Uses

• Setting engine timing during maintenance or overhaul procedures

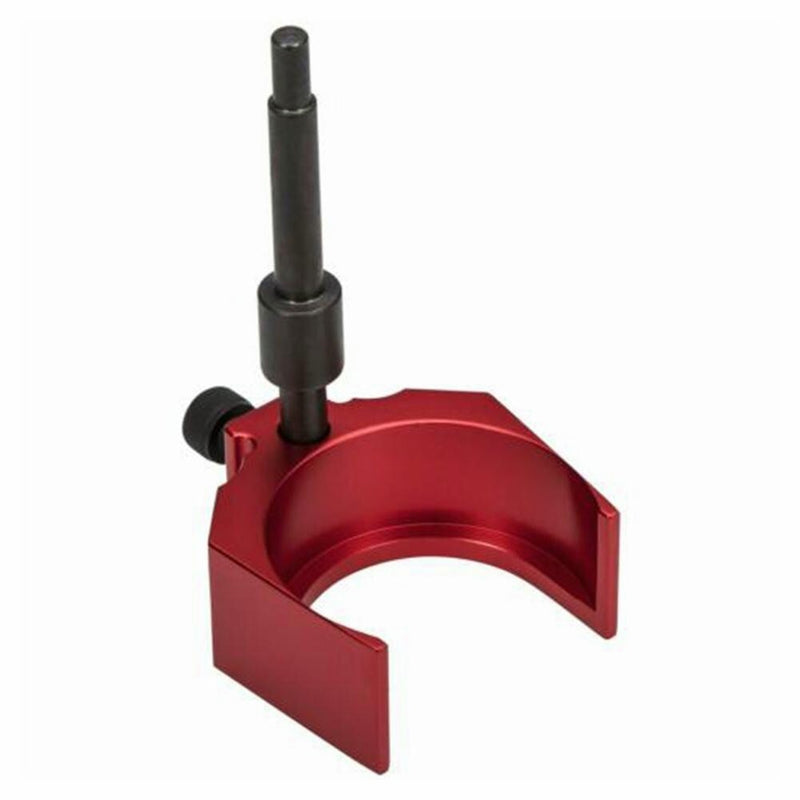

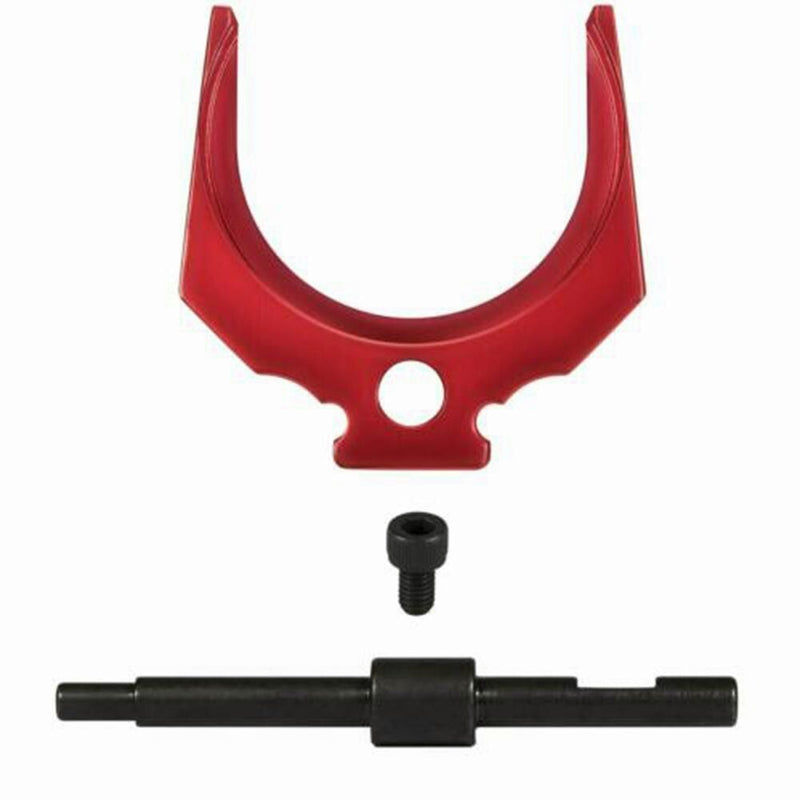

• Verifying injector height when reinstalling or adjusting fuel injectors
• Barring the engine to a specific position for service work

Technical Specifications

• Product Type: Timing Pin and Injector Height Tool Set
• Engine Application(s): Caterpillar 3406E, Caterpillar C-15, Caterpillar C-16

Frequently Asked Questions

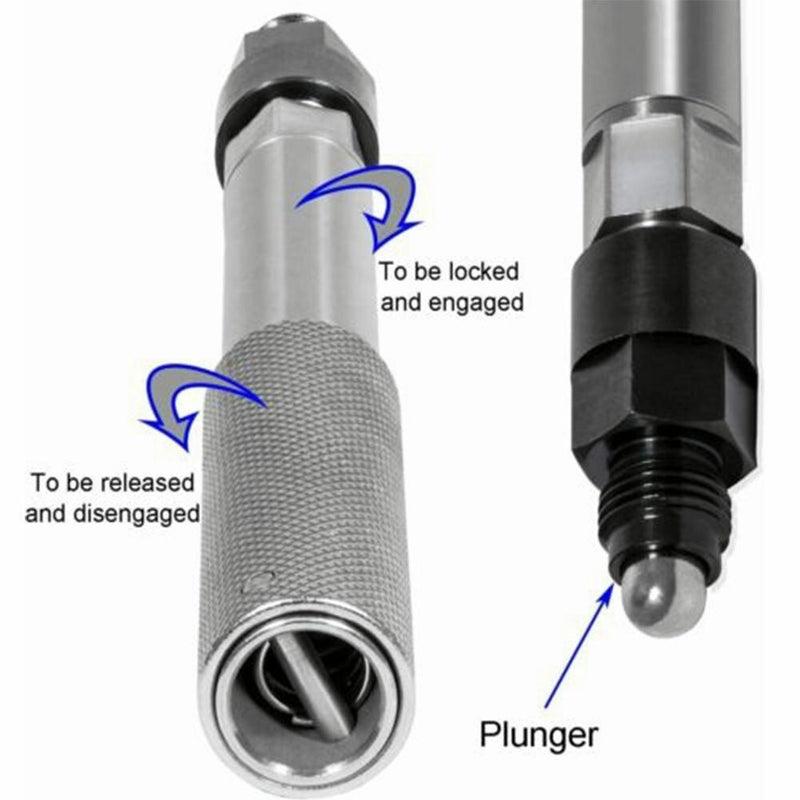

Q: What is the purpose of a timing pin and injector height tool set? A: The timing pin locks the engine in the correct position for timing procedures, and the injector height tool helps verify proper injector installation height.

Q: How should I confirm this set fits my engine? A: Verify that your engine model is listed as a compatible application and check any part numbers on your existing tooling against the specifications provided.

This is an aftermarket replacement part and is not represented as genuine or original equipment. Product appearance and specifications may vary slightly by batch. Compatibility may vary by serial number, model year, or existing part number. Verify fitment before purchase.
